Porta Garibaldi

Urban Simulation

Discipline

URBAN PLANNING

Year

2013

Workplace

Laboratorio di Simulazione Urbana, Politecnico di Milano

 Typology

Urban Simulation

Location

Milan, Italy

Scope of Work

Schematic Design
Urban Simulation

01

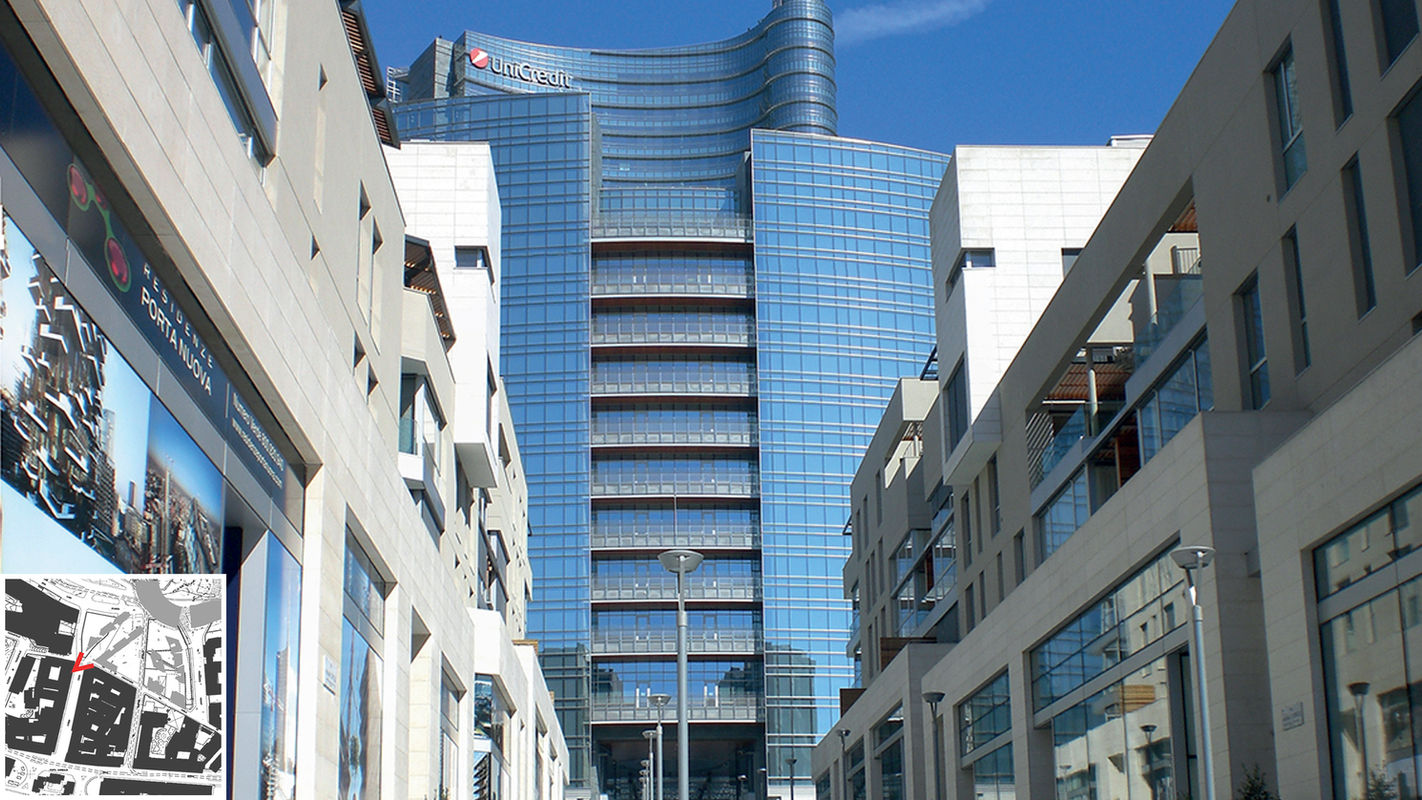

The initial site analysis was about observing the new Porta Garibaldi project and it's visual impact on the existing surroundings.

01. Visual Perception of the Existing Project

02

The infrastructural decision to build a tunnel urged the designer to erect an elevated platform, hence to use Stairs, Ramps, Bridges, Escalators and a Sloped Park as means of accessibility to connect to this urban plateau.

02. Infrastructural Analysis

2.1.

​

2.2.

​

2.3.

​

03

Shadow analysis


03. Design Guidelines & Final Project

04

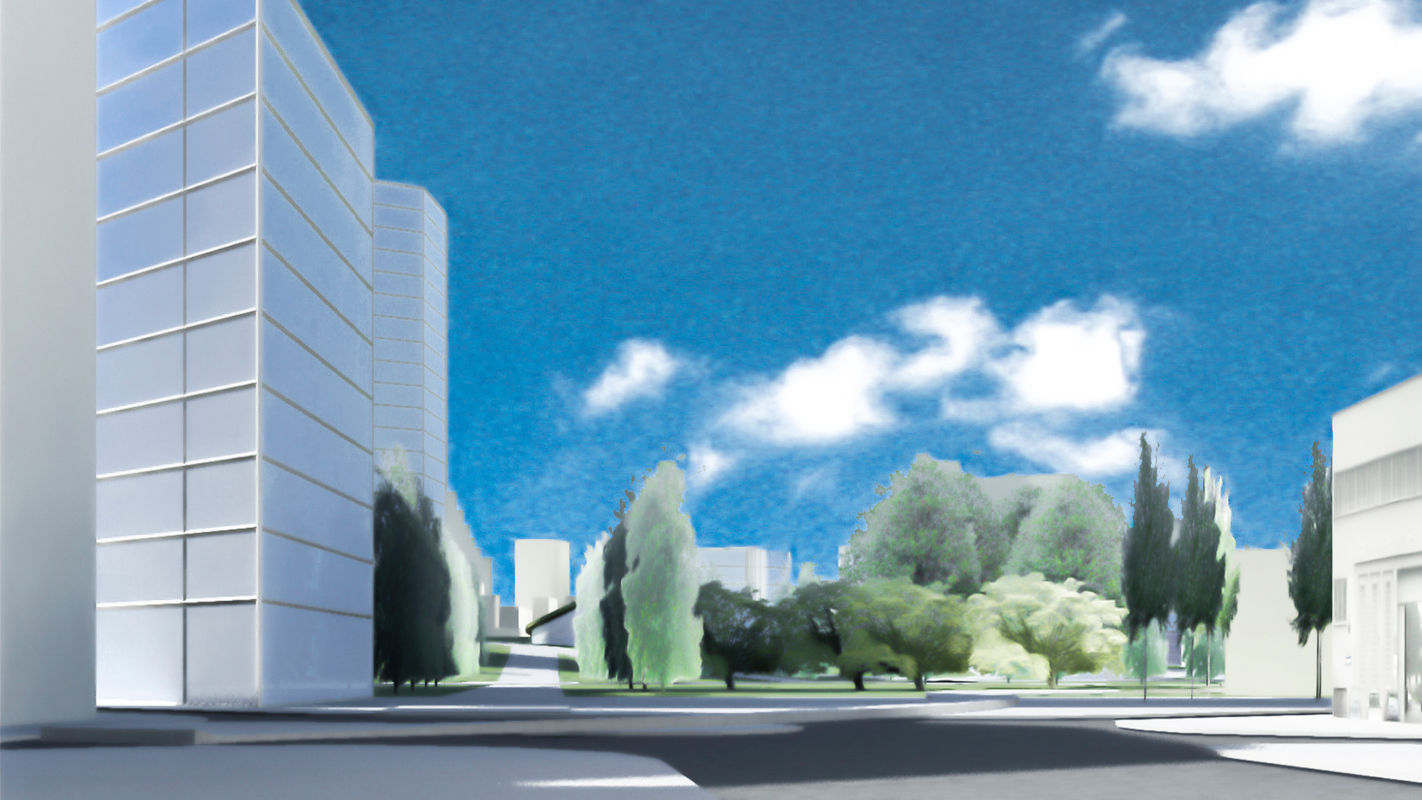

This simulation aims to evaluate the new volumes within the urban context from a perceptual point of view, which eventually helped to compare the present condition with the new design proposal to ensure it's compliance with the previously established design guidelines.


04. Vantage Points of Urban Simulation
